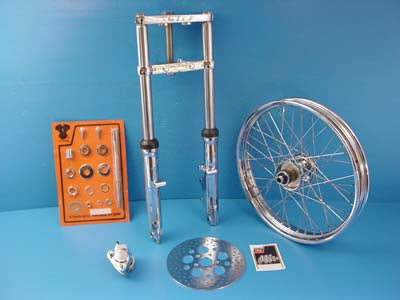

Complete your Softail or custom Harley build with this 41mm FXST-style chrome front end assembly featuring an assembled fork, chrome triple trees, 21" spoke wheel, front brake and installation hardware.
Designed as a complete single-disc front-end package, the fork assembly features hard chrome 41mm tubes with chrome lower sliders and installed internal components. The included chrome triple trees use a 1" steering stem, while the fork leg assemblies measure approximately 31" overall.
The kit also includes a 21" x 2.15" spoke front wheel, drilled 11-1/2" brake rotor, chrome single-disc brake caliper, axle and associated front-end hardware.
This makes it a solid option for replacing a complete FXST front end or building a custom Evo, Shovelhead or chopper around an FXST-style 41mm setup.
Features
Complete 41mm FXST-style front end assembly
Hard chrome 41mm fork tubes
Chrome lower fork sliders
Fork internals installed
Chrome triple trees
1" steering stem
Approximately 31" overall fork leg length
Single-disc front brake configuration
21" x 2.15" spoke front wheel
Drilled 11-1/2" front brake rotor
Chrome front brake caliper with pads
Chrome rotor hardware
Fork sliders without reflector bosses
Axle and wheel bearings included
Top cone and steering stem nut included
Triple-tree pinch bolts included
Fork dust covers included
Primary Fitment
Harley-Davidson FXST
1984–1999
V-Twin also states that this FXST-style front end can be used with:
1948–1984 Harley-Davidson FL
1971–1984 Harley-Davidson FX
Applications outside the listed 1984–1999 FXST fitment should be treated as custom installations. Steering-neck dimensions, stops, wheel spacing, brake clearance and overall front-end geometry should be verified before installation.
Specifications
Fork Diameter: 41mm
Fork Style: FXST
Fork Leg Length: 31" overall
Fork Tube Finish: Hard Chrome
Lower Slider Finish: Chrome
Triple Tree Finish: Chrome
Steering Stem: 1"
Front Wheel: 21" x 2.15" spoke
Brake Configuration: Single Disc
Brake Rotor: 11-1/2" drilled disc
Brake Caliper: Chrome single-disc caliper
V-Twin Part Number: 24-2006
Manufacturer: V-Twin Manufacturing
Kit Includes
Assembled 41mm fork legs with internals
Chrome triple trees
1" steering stem
21" x 2.15" spoke front wheel with bearings
Front axle
Drilled 11-1/2" brake rotor
Chrome rotor screws
Chrome front brake caliper
Brake pads
Caliper mounting hardware
Steering bearings
Top cone
Stem nut
Triple-tree pinch bolts
Fork dust covers
Fork Oil / Installation Note
The fork assemblies are shipped with assembly lubricant. Drain the assembly lubricant before use and refill the forks with the proper fork oil.
V-Twin recommends 20W fork oil for average riding conditions, with approximately 10.2 oz of fork oil per leg.
Before installation, verify steering neck compatibility, steering stops, wheel alignment, brake rotor and caliper alignment, axle spacing and adequate clearance throughout the full steering and suspension travel.
Professional installation is recommended for complete front-end swaps and custom applications.
